Precision Watertight Short Connector Fischer Alternative SS 103 Plug TYN.103F

Product Categories
XI'AN SPRING TECHNOLOGY CO,.LTD
Contact Now

Precision Watertight Short Connector Fischer Alternative SS 103 Plug TYN.103F

  • 1
  • 2

Brand Name : SPRING

Model Number : TYN.103F

Certification : CE,CB,ISO9001

Place of Origin : CHINA

MOQ : 5

Price : Negotiable

Payment Terms : Western Union, T/T, MoneyGram

Supply Ability : 100000pcs/month

Delivery Time : 5 work day

Packaging Details : Bag

Shell material : Brass

Termination : Solder

Protection level : IP68/66

Shell finish : Chrome

Cable range : 2.2mm~7.5mm

Shell size : 103F

Insulator material : PPS

Contact Now

1. TYN.103F watertight short Connector brief introduction:

TYN.103F can intermateable with Fischer SS 103 connector but cheaper. High density pin placement allows more compact designs, Highly reliable performance in tough environments

2. TYN.103F watertight short Connector description:

  • Increased equipment life span (guiding mechanism optimally protects the contacts)
  • Robust and shock resistant (designs ideal for equipment used in the field)
  • security of the Push-Pull self-latching system
  • multipole types 2 to 16 contacts
  • Easy mating, can be blind-mated (guiding mechanism ensures precise alignment)
  • watertight connection (IP 68/IP 66),waterproof and sandproof;
  • solder contacts
  • high packing density for space savings
  • 360°screening for full EMC shielding.

3, Cross reference

SPRING P/N FISCHER P/N Definition
TYN.103F.302.CLAD** SS 103 A/Z 051-130+ TY Plug with key (N), Shell Size 103,multipole type with 2 contacts, outer shell in chrome-plated brass, PPS insulator, male solder contacts, for 2.2~7.5mm diameter cable
TYN.103F.303.CLAD** SS 103 A/Z 052-130+ TY Plug with key (N), Shell Size 103,multipole type with 3 contacts, outer shell in chrome-plated brass, PPS insulator, male solder contacts, for 2.2~7.5mm diameter cable
TYN.103F.304.CLAD** SS 103 A/Z 053-130+ TY Plug with key (N), Shell Size 103,multipole type with 4 contacts, outer shell in chrome-plated brass, PPS insulator, male solder contacts, for 2.2~7.5mm diameter cable
TYN.103F.305.CLAD** SS 103 A/Z 054-130+ TY Plug with key (N), Shell Size 103,multipole type with 5 contacts, outer shell in chrome-plated brass, PPS insulator, male solder contacts, for 2.2~7.5mm diameter cable
TYN.103F.306.CLAD** SS 103 A/Z 056-130+ TY Plug with key (N), Shell Size 103,multipole type with 7 contacts, outer shell in chrome-plated brass, PPS insulator, male solder contacts, for 2.2~7.5mm diameter cable
TYN.103F.307.CLAD** SS 103 A/Z 057-130+ TY Plug with key (N), Shell Size 103,multipole type with 7 contacts, outer shell in chrome-plated brass, PPS insulator, male solder contacts, for 2.2~7.5mm diameter cable
TYN.103F.308.CLAD** SS 103 A/Z 058-130+ TY Plug with key (N), Shell Size 103,multipole type with 8 contacts, outer shell in chrome-plated brass, PPS insulator, male solder contacts, for 2.2~7.5mm diameter cable
TYN.103F.312.CLAD** SS 103 A/Z 062-130+ TY Plug with key (N), Shell Size 103,multipole type with 12 contacts, outer shell in chrome-plated brass, PPS insulator, male solder contacts, for 2.2~7.5mm diameter cable

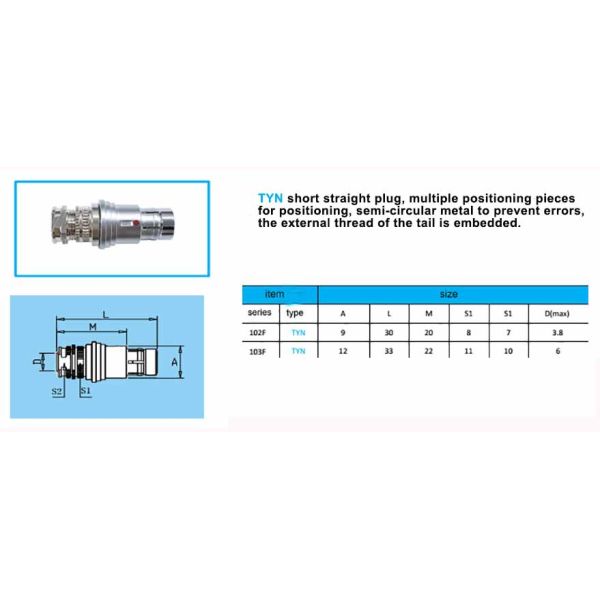

4, TYN.103F watertight short Connector, with arc-shape metal guides,back nut with threaded.

Precision Watertight Short Connector Fischer Alternative SS 103 Plug TYN.103F

5, Keying Codes Options
All Multipole body styles are mechanically coded.
Code 1 is the standard, but other codes can be requested



Precision Watertight Short Connector Fischer Alternative SS 103 Plug TYN.103F

6, Choosing tips:

If you have purchased FISCHER connector or connector like this type and know the original model, please tell us. We will directly offer you our corresponding one.
If you don’t know much about the connector, please make choose according the following factors:

  1. the use of the environment, indoors or outdoors, waterproof or not;
  2. the panel hole size, to select the appropriate plug and socket of right dimension;
  3. the current-voltage and the realization of the function, to determine the cores;
  4. select the appropriate clamp diameter and sheath;
  5. according to the actual needs of different angles of the keys, to determine the keying (the standard keys as N)

7. TYN.103F watertight short Connector technical specification:

Pulling and inserting times > 3000 cycles
Humidity Maximum humidity up to 95% at a temperature of 40°
Temperature -55°~+145°
Vibration frequency 10-20000HZ, acceleration 147m/s², ≤1um instantaneous break
Impact acceleration 490m/s², ≤1um instantaneous break
Protection index (mated) IP68
Connector type Plug, Male Pins;
Number of positions 2-16 pin
Termination Solder
Fastening type Push-pull
Orientation N (A, B)
Shell material Brass
Shell finish Chrome
Shell color Silver/Black
Contact material Brass
Contact finish-mating Gold
Contact color Gold
Insert material polyphenylene sulfite ( PPS)
Cable opening 2.2mm~7.5mm

Request a quote, sample, and datasheet. Inquiry now !
