MFN 105F Circular Connector | Flange Square Corner Screw Fixed Socket
MFN 105F protruding flange square corner screw fixed socket, external screw fixing (front panel mounting), internal semi-circular metal piece positioning, preventing mis-insertion, waterproof (IP68)
1, Brief introduction:
fast insertion, high density, waterproof,small size, blind insertion and high life,connector assures a reliable connection with corresponding Fischer plugs and Plugs of other companies of the same type making it,Ideal for military, avionics, automotive and many other connector applications that demand rugged performance.
2, Main features:
- semi-circular positioning piece
- inside to prevent errors
- waterproof, small size, blind insertion and high life
- suitable for high-density installations
- IP68 protection level, waterproof and sandproof;
- 360 degree shielding provides full EMC protection.

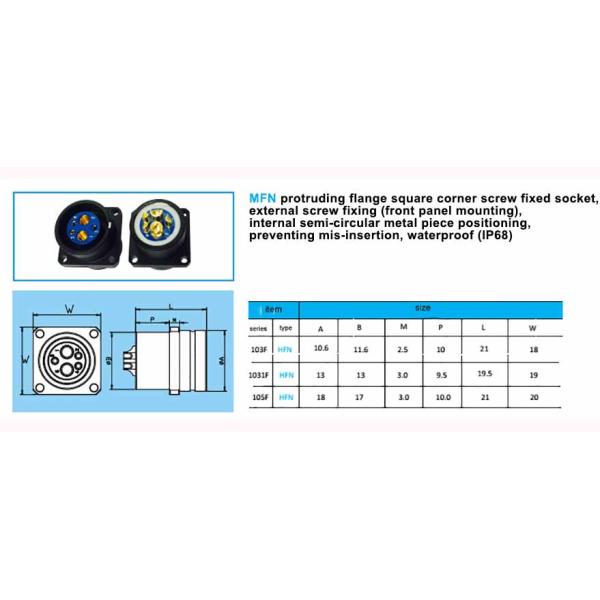

3, Construction and size:
4, Technical data sheet:
| Mechanical life | >3000 |
| Vibration | frequency 10-20000Hz, acceleration 147m/s2, ≤1um instantaneous impact: acceleration 490m/s2, ≤1um instantaneous |
| Working temperature | -55 ° C ~ + 145 ° C |
| Relative humidity | up to 95° at 40°C |
| Protection level | IP68 |
| Connector type | socket,female pin |
| Number of positions | 1~40 pin |
| Termination | Solder |
| Fastening type | Push-pull |
| Orientation | semi-circular positioning |
| Shell material | Brass |
| Shell finish | Chrome |
| Shell color | Silver |
| Contact material | Brass |
| Contact finish-mating | Gold |
| Contact color | Gold |
| Insert material | PPS |
5, Why choose us
- We can provide OEM/ODM service and cable assembly solution.
- better quality at a reasonable price
- Our factory has 9 years experience and strong and professional research and development capabilities.Advanced development and management, comprehensive R&D testing and highly automatic production line make our products high reliability and high performance.
- Lower your cost, cheap cable assembly offer, at least save your 30%-50% cost (100% compatible and work well)
- Our company have passed ISO9001, and also got CE,CB,and SGS certification
- large stock, short lead times, easy to buy.
6, Choosing tips:
If you have purchased fischer connector or connector like this type and know the original model, please tell us. We will directly offer you our corresponding one.
If you don’t know much about the connector, please make choose according the following factors:
- the use of the environment, indoors or outdoors, waterproof or not;
- the panel hole size, to select the appropriate plug and socket of right dimension;
- the current-voltage and the realization of the function, to determine the cores;
- select the appropriate clamp diameter and sheath;
- according to the actual needs of different angles of the keys, to determine semi-circular positioning
7, Product picture:
Request a quote, sample, and datasheet. Inquiry now !
