6 Poles Plastic Red Backnut Fixed Socket | PKG 1P 306 GLLR Connector
SPRING PKG.1P.306.GLLR Receptacle Compatible Lemos redel 1P series connector.The products are mainly used in various medical equipment, such as: ultrasonic detector, ventilator, monitor, blood pressure monitor, infrared therapeutic apparatus,etc,Spring connector Compatible with existing push-pull connectors
1, Brief introduction:
Spring connector Compatible with existing push-pull connectors,SPRING P Series Push-Pull Connectors are designed to offer a reliable connection for data, signal in Medical Applications,SPRING TECHNOLOGY offer a full range of rugged self-latching push pull connectors used in a variety of Medical Equipment,
2, Why choose our
1. large stock, short lead times, easy to buy.
2. better quality at a reasonable price
3, Lower your cost, cheap cable assembly offer, at least save your 30%-50% cost (100% compatible and work well)
4, We can provide OEM/ODM service and cable assembly solution.
3, Main features:
- High-density installation saves space
- Soldering and printed circuit board pins
- The tail nut and the socket round nut are color-coded to prevent mis-insertion
- Plastic housing, waterproof rating ip50, double reed lock, keyway prevents rotation
- Shell made of copper alloy, stainless steel is used in special occasions, plated with Nickel or Chrome;
- Pin and jack made of copper alloy, plated with gold
4, Construction and size:
5,Technical specification:
| Working current | 1.5~~35A (mainly related to the cross-sectional area of the contact) |
| Working voltage | DC/200~~2.7KV, AC/150~~2KV (mainly related to the distance between contacts) |
| Test voltage | DC/600~~5KV, AC/1.5~~4.5KV (mainly related to the distance between contacts) |
| Contact resistance | 2.5~~10mΩ |
| Insulation resistance | ≥5000M |
| Mechanical life | ≥ 1000 times (connection and separation) |
| Protection level | IP50 |
| Connector type | Socket, Female Pins |
| Number of positions | 6 pin |
| Termination | Soldering and printed circuit boards |
| Fastening type | Push-pull |
| Shell material | Plastic |
| socket round nutcolor | Red |
| Contact material | Brass |
| Contact finish-mating | Gold |
| Contact color | Gold |
| Insert material | PPS |
6, Choosing tips:
If you have purchased lemo connector or connector like this type and know the original model, please tell us. We will directly offer you our corresponding one.
If you don’t know much about the connector, please make choose according the following factors:
1 the use of the environment, indoors or outdoors, waterproof or not;
2 the panel hole size, to select the appropriate plug and socket of right dimension;
3 the current-voltage and the realization of the function, to determine the cores;
4 select the appropriate clamp diameter and sheath;
5 according to the actual needs of different angles of the keys, to determine the keying (the standard keys as G).

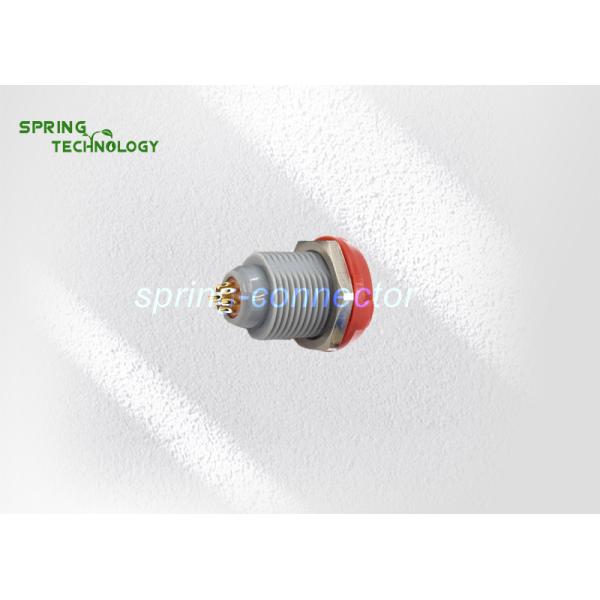

7, Product picture:
Request a quote, sample, and datasheet. Inquiry now
