SPRING 8 Poles Plastic Power Plug Compatible Lemos redel P series Plug
SPRING PAG.1P.308.GLAD**J Plug Compatible Lemos PAG.M0.8GL.AC**J connector.The products are mainly used in various medical equipment, such as: electrophysiology, electric shock generator, nuclear magnetic resonance, CT, high frequency electrosurgical unit,etc
1, Brief introduction:
The ruggedized design combined with precision manufacturing offers excellent durability, reliability and quality,SPRING offers high reliable connection solutions with metal or plastic housing,offer this concise range of push pull circular connectors specifically designed for applications that require secure and precise connector signal integrity.
2, Why choose our
1. better quality at a reasonable price
2, We can provide OEM/ODM service and cable assembly solution.
3. Lower your cost, cheap cable assembly offer, at least save your 30%-50% cost (100% compatible and work well)
4, large stock, short lead times, easy to buy.
3, Main features:
- The sheath is injection molded with soft engineering plastics, which can protect the cable well.
- The waterproof sealing ring is made of high temperature resistant silicone rubber.
- Insulator molded with engineering plastic which is high-temperature endurable and good insulating;
- Sleeve molded with soft plastic to protect cables.
- Waterproof gasket ring is made of high-temperature endurable silicone rubber
- Gray Backnut

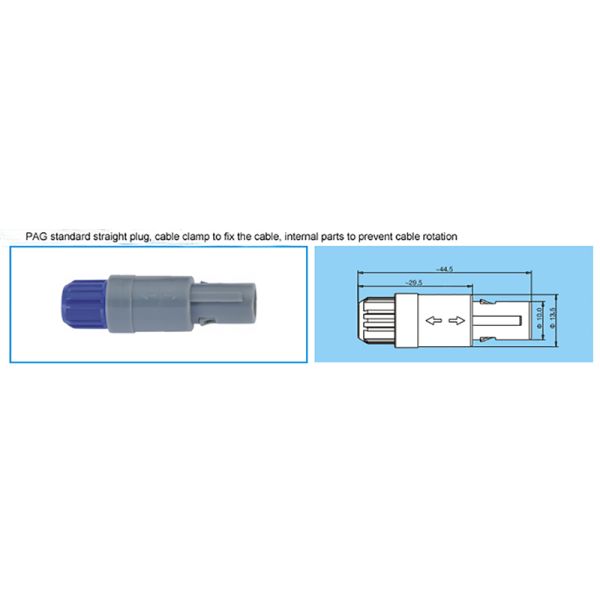

4, Construction and size:
5,Technical specification:
| Working current | 1.5~~35A (mainly related to the cross-sectional area of the contact) |
| Working voltage | DC/200~~2.7KV, AC/150~~2KV (mainly related to the distance between contacts) |
| Test voltage | DC/600~~5KV, AC/1.5~~4.5KV (mainly related to the distance between contacts) |
| Contact resistance | 2.5~~10mΩ |
| Insulation resistance | ≥5000M |
| Mechanical life | ≥ 1000 times (connection and separation) |
| Protection level | IP50 |
| Connector type | Plug,Male Pins |
| Number of positions | 8 pin |
| Termination | Soldering and printed circuit boards |
| Fastening type | Push-pull |
| Shell material | Plastic |
| socket round nutcolor | Yellow |
| Contact material | Brass |
| Contact finish-mating | Gold |
| Contact color | Gold |
| Insert material | PPS |
| Cable opening | 3.5mm~6.5mm |
6, Choosing tips:
If you have purchased lemo connector or connector like this type and know the original model, please tell us. We will directly offer you our corresponding one.
If you don’t know much about the connector, please make choose according the following factors:
1 the use of the environment, indoors or outdoors, waterproof or not;
2 the panel hole size, to select the appropriate plug and socket of right dimension;
3 the current-voltage and the realization of the function, to determine the cores;
4 select the appropriate clamp diameter and sheath;
5 according to the actual needs of different angles of the keys, to determine the keying (the standard keys as G).

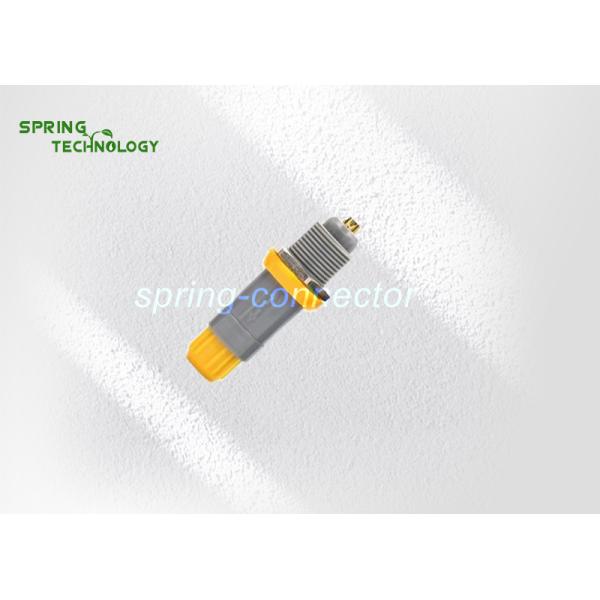

7, Product picture:
