SPRING Watertight Self-latching Multipole Connectors With Positioning Key
Xi'an spring technology Co., Ltd. is a professional push pull connector manufacturer integrating connector research and development, production and sales!offer this concise range of push pull circular connectors specifically designed for applications that require secure and precise connector signal integrity,
1, Brief introduction:
The SPRING K series push-pull self latching connectors designed for outdoor applications,All models of this series can be waterproof when plugged in, and they can achieve IP protection level after properly assembled with the corresponding cables.
2, Why choose our
1. large stock, short lead times, easy to buy.
2. better quality at a reasonable price
3, We can provide OEM/ODM service and cable assembly solution.
4, Lower your cost, cheap cable assembly offer, at least save your 30%-50% cost (100% compatible and work well)
5, Our factory has 9 years experience and strong and professional research and development capabilities.Advanced development and management, comprehensive R&D testing and highly automatic production line make our products high reliability and high performance.
3, Description:
- Safe push-pull locking system
- Rugged housing design for extremely harsh working environments
- 360° shield provides full EMC protection
- Multipoles 2-32,High density installation saves space.
- Positioning pin system, G is standard positioning pin for connector alignment
- Waterproof connection(IP68/IP66)
- Welding, crimping and printed board contact (straight or angled)
- Multiple positioning pin selection avoids intermixing between similar connectors
4, Construction:
5, Technical specification:
| Pulling and inserting times | >5000. |
| Humidity | Maximum humidity up to 95% at a temperature of 60°, Water-proof |
| Temperature | -45°~+125° |
| Vibration | 10~20000HZ,15g |
| Mechanical shock | 100g·6ms |
| Salt spray corrosion test | >48h |
| Protection level | IP65~68 |
| Connector type | Plug, Male Pins,socket,female pin |
| Number of positions | 2~32 pin |
| Termination | Solder |
| Fastening type | Push-pull |
| Orientation | G,(A...F, L&R) |
| Shell material | Brass |
| Shell finish | Chrome |
| Shell color | Silver |
| Contact material | Brass |
| Contact finish-mating | Gold |
| Contact color | Gold |
| Insert material | PPS |
| Cable opening | 1.0mm~10.5mm |
6, Choosing tips:
If you have purchased Lemo connector and know the original model, please tell us. We will directly offer you our corresponding one.
If you don’t know much about the connector, please make choose according the following factors:
1 the use of the environment, indoors or outdoors, waterproof or not;
2 the panel hole size, to select the appropriate plug and socket of right dimension;
3 the current-voltage and the realization of the function, to determine the cores;
4 select the appropriate clamp diameter and sheath;
5 according to the actual needs of different angles of the keys, to determine the keying (the standard keys as G).
7, Product picture:

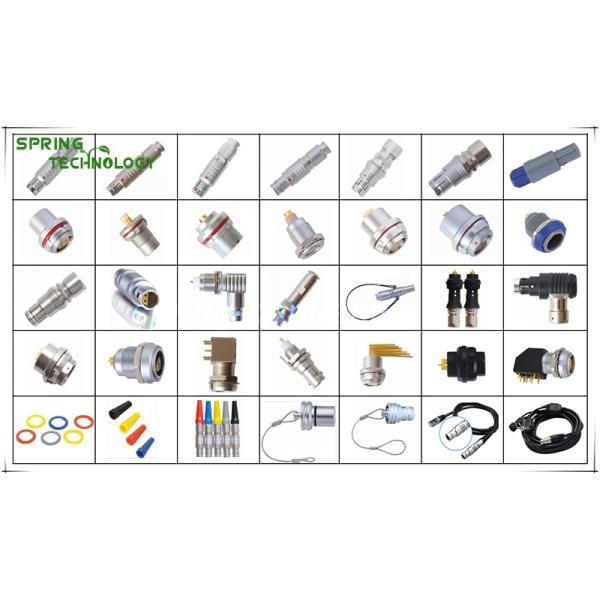

8,Other connectors:
Request a quote, sample, and datasheet. Inquiry now
