ZEG 0K Metal Connectors Analogues of Lemos EEG 0K 303 CLL Receptacle
SPRING ZEG 0K 303 CLL Substitute for LEMOS EEG 0K 302 CLL,ZEG.0K.303.CLL=ZE Socket,Positioning pin (G), 0K Series, Multi-pin, 3-pins, Brass Chrome Plated, PPS Insulator, Solder Female pin.
1, Brief introduction:
SPRING CONNECTOR connectors with push-pull fast locking system extend the existing M12connector,The push pull latching mechanism provides a secure connection whilst the density of the contacts provide for considerable panel space savings,SPRING K Series Push-Pull Connectors are designed to offer a reliable connection for data, signal, and power transmissions in outdoor,Suitable for working in harsh environments,
2, Why choose our
1. large stock, short lead times, easy to buy.
2. Lower your cost, cheap cable assembly offer, at least save your 30%-50% cost (100% compatible and work well)
3, better quality at a reasonable price
4, We can provide OEM/ODM service and cable assembly solution.
3, Main features:
- Solder, crimping and printed board contact (straight or angled)
- can be waterproof when plugged in
- offer cable assemblies for our customers
- Multiple positioning pin selection avoids intermixing between similar connectors
- High density installation saves space
- It has keying system for connector alignment
- Safe push-pull locking system

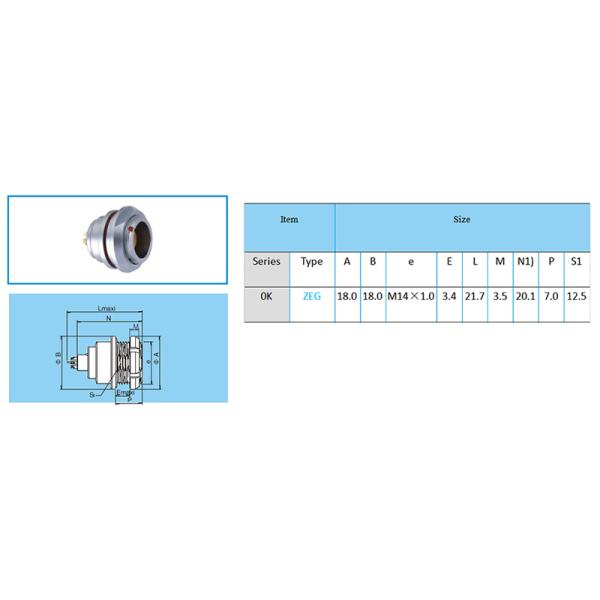

4, Construction and size:
ZEG Fixed socket, nuts fixed,locating pin(G) or locating pin(A...F,L or R),(rear panel installation)
5, Technical specification:
| Pulling and inserting times | >5000. |
| Humidity | Maximum humidity up to 95% at a temperature of 60°, Water-proof |
| Temperature | -45°~+125° |
| Vibration | 10~20000HZ,15g |
| Mechanical shock | 100g·6ms |
| Salt spray corrosion test | >48h |
| Protection level | IP65~68 |
| Connector type | Socket, Female Pins |
| Number of positions | 2~9 pin |
| Termination | Solder |
| Fastening type | Push-pull |
| Orientation | G,(A...F, L&R) |
| Shell material | Brass |
| Shell finish | Chrome |
| Shell color | Silver |
| Contact material | Brass |
| Contact finish-mating | Gold |
| Contact color | Gold |
| Insert material | PPS |
6, Choosing tips:
If you have purchased lemo connector or connector like this type and know the original model, please tell us. We will directly offer you our corresponding one.
If you don’t know much about the connector, please make choose according the following factors:
1 the use of the environment, indoors or outdoors, waterproof or not;
2 the panel hole size, to select the appropriate plug and socket of right dimension;
3 the current-voltage and the realization of the function, to determine the cores;
4 select the appropriate clamp diameter and sheath;
5 according to the actual needs of different angles of the keys, to determine the keying (the standard keys as G).

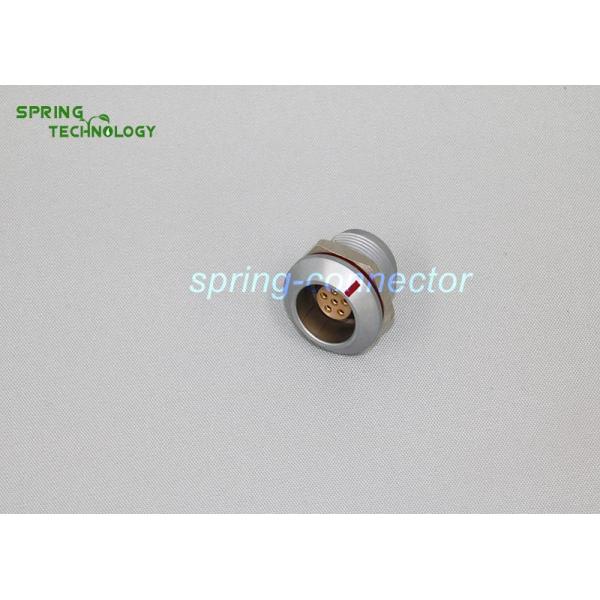

7, Product picture:
Request a quote, sample, and datasheet. Inquiry now !
